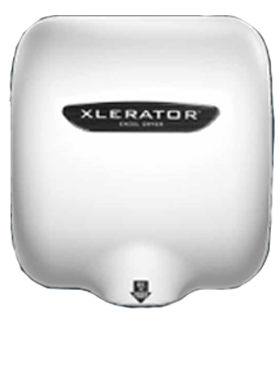

XLERATOR Hand Dryers


Features & Benefits

10 Second Dry Time
Adjustable speed and Sound Control
Variable heat - high, Medium, Low and Off
80% Less Energy Tahn Conventional Hand Dryers
95% Cost Savings Vs. Paper Towels
Made in USA Certified
1 Year Limited Warranty
GreenSpec Listed and Helps Qualify for several LEED credits
A Hygenic Hand Drying Solution
Over a Decade of Proven Performance
Virtually Maintenance Free

Options

HEPA Filtration System: Filters 99.97 of bacteria at 0.3 microns from the air stream. 1.1 Noise Reduction Nozzle: Lowers decible Level 9db by reducing air deflection noise but increase dry time by approximately 3 seconds.

Online Information

Products Videos
Cost Savings & Carbon Footprint Calculator
Life Cycle Assessment Study
Case Studies
3 Part Specification
CAD/BIM Images
AIA/GBCI CEU Courses
Technical Data Sheet

Dimensions

Width 11 3/4" (298mm)
Height 12 11/16" (322mm)
Depth 6 11/16" (179mm)

Weight

XL-BW: 15lbs. (6.8kgs.)
Xl-SB: 16lbs. (7.26 Kgs.)
XL-W,GR,C,SI,Sp: 17 lbs. (7.71 kgs.)

Activation

Automatic Sensor Operated

Mounting

Surface Mounted

Suggested Mounting Heights

Men 45" (114 cm)
Women 43" (109 cm)
Handicapped 37" (94 cm)

Note: Heights Measured from floor to bottom of dryer

Accessories

Anti-Microbial Wall Guards
XChanger Paper Towel Dispenser Retrofir Kit
ADA- Compliant Recess Kit



Width 16 3/8" (416 mm)
Height 26" (660 mm)
Depth 3 3/8" (86 mm)
Weight 11 lbs. (4.99kgs.)

Dry time based on third party testing performed by SGS International on standard XLERATOR hand dryer with 0.8" nozzle to 0.2g or less of residual moisture.

Special Paint poweder-coated covers are available in many colors and textures.

Exclusive digital image technology allows for the addition of company, school or team logos with any color, design or a 'green message'.

Electrical

VOLTS AMPS WATTS NO HEAT AMPS NO HEAT WATTS HERTS
110-120V 11.3-12.2A 1240-1450W 4.3-4.5A 460-530W 50/60 Hz
208-277V 5.6-6.2A 1160-1490W 2.0-2.2A 425-500W 50/60 Hz
230V 6.1A 1410W 2.2A 500W 50 Hz
